AUTOMATIC Electrode Casing Welding System For Ferroalloy Submerged Arc Furnaces

Overview

The electrode shell is the core loadcarrying and conductive component of submerged arc furnaces for ferroalloy smelting. Manual welding causes unstable quality, low efficiency, high labor intensity, and safety risks. Our intelligent welding system integrates robotized submerged arc welding, precision positioning, modular production lines, and central monitoring to deliver fullprocess automation, consistent quality, high efficiency, and safe operation-matching the hightemperature, highload, longcycle demands of modern ferroalloy plants.



PART 1: Modular Intelligent Welding Solutions

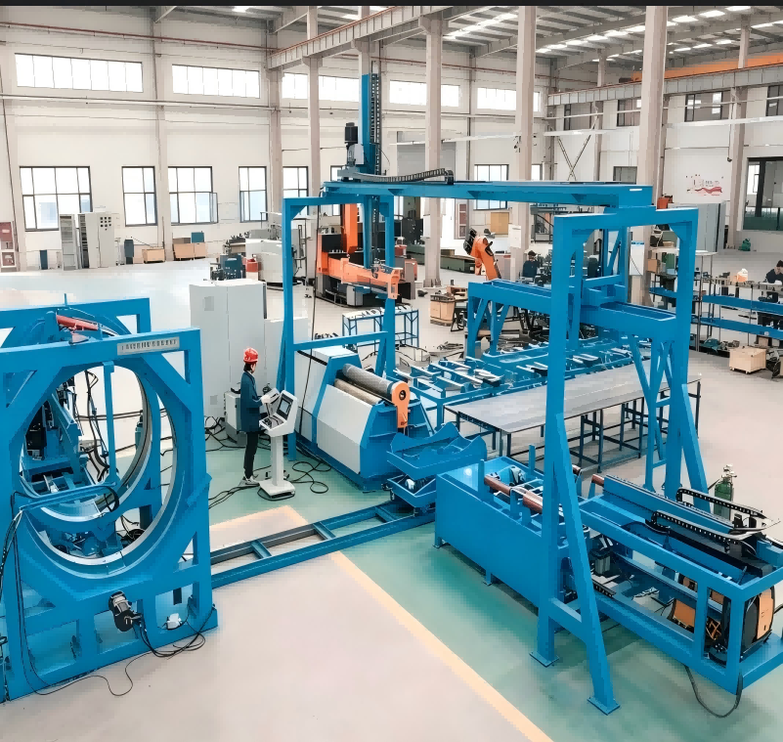

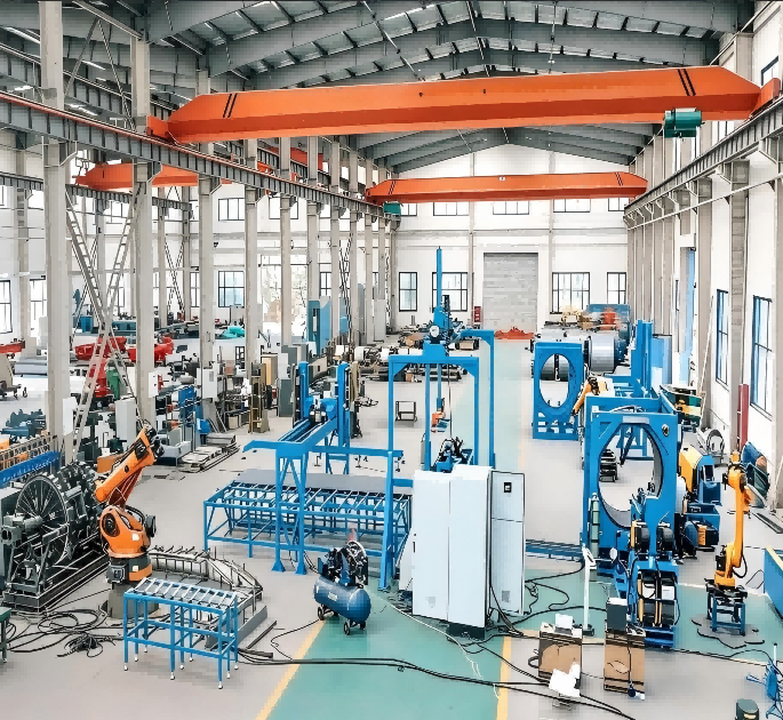

1. Modular Electrode Assembly Smart Workshop

Fullprocess automation from raw sheet to finished electrode shell via three integrated units:

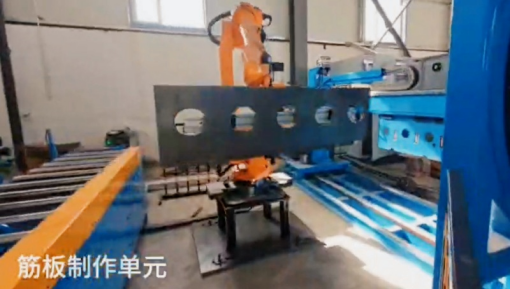

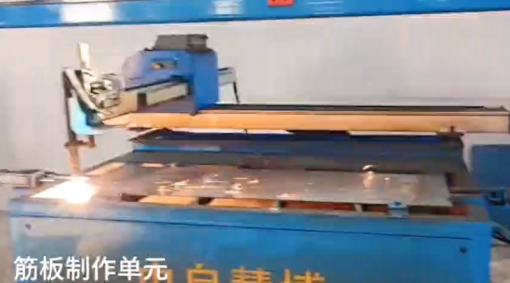

Automated Material Preparation

Integrated gantry robots + shearing, punching, bending

Supports multispec production; reuse existing shears, presses, benders

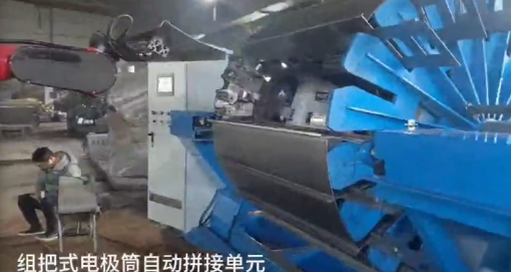

Automated Splicing & Positioning

Patented intelligent splicing trolley

Highprecision assembly of curved plates and inner ribs

Hydraulic clamping; robotcollaborative, zero manual interventionsportation of semi-finished food project



Highlights

Onekey start; fullprocess automatic

Realtime monitoring & scheduling

Minimized labor; stable capacity

PART 2. Copper Shoe Type Smart Workshop

Four core production units for highcurrent copper contact shoe assemblies:





Production Benefits

Manpower: 1 operator + 1 inspector

Stable daily output: 8+ units

Optimized flow; low energy consumption; high uniformity

---

PART 3: Core Technical Advantages (MetallurgyValidated)

✅ High Degree of Automation

Fullline automation cuts labor cost and management load.Consistent with modern ferroalloy plant trends toward lowman, highreliability production.

✅ Remarkable Efficiency Improvement

24h continuous operation; shorter cycle; stable output; fast market response.Supports largescale electrode shell supply for highcapacity furnaces.

✅ Excellent & Consistent Quality

Robotcontrolled parameters ensure uniform weld strength, conductivity, and heat resistance.Reduces defects from manual variation; improves furnace run length and safety.

✅ Reliable Safety & Environment

Reduced humanmachine contact; enclosed welding; less arc, fume, and heat exposure.Compliant with industrial safety and metallurgical production standards.

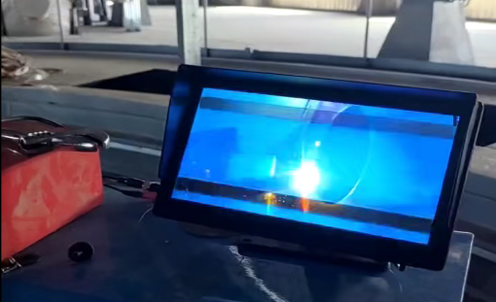

PART 4: For the electrode shell welding robots on the top floor: each furnace is equipped with 3 electrodes, plus one external welding robot and one internal welding robot.

Contact Us

For technical datasheets, layout proposals, and onsite evaluation tailored to your furnace capacity and electrode specifications.

Engineering the future of ferroalloy smelting through intelligent electrode shell manufacturing.
